The cyclic redundancy check (CRC) error message is one that seems once a corruption or suspicious modification is detected in data on storage devices and networks. Here's however it seems and the way to mend it.
What Is CRC?
Cyclic redundancy check (CRC) could be a common data transmission error detection technique unremarkably employed in the info communication field. The transmit finish calculates a check code for {the knowledge|the info|the information} in an exceedingly data frame supported a definite rule, appends the check code to the info frame, and sends the info frame to the receive finish. The receive finish verifies the correctness and integrity of the received data by continuance the calculation mistreatment an equivalent rule.
Complete information about CRC Errors
Bit errors (0 modified to one or one modified to 0) might occur in transmitted data because of transmission media faults or external interference, inflicting incorrect data on the receive finish. To resolve this downside, the receive finish has to perform error detection on the received data and accepts the info only if it's correct.
There ar several error detection strategies, like substantiation, verification check, and CRC check. Their implementation is similar: The transmit finish calculates a check code for data employing a bound rule, and sends the check code and data to the receive finish. The receive finish performs an equivalent calculation to ascertain whether or not the info changes.
CRC was 1st projected by W. Wesley Peterson, a scientist and man of science, in 1961. CRC has blessings over alternative error detection strategies in terms of speed, cost, and correctness. Therefore, CRC has become the foremost unremarkably used error detection methodology within the pc info and communications fields. for instance, a typical LAN frame ends with a 4-byte frame check sequence (FCS) for error detection.
How Is CRC Calculation Implemented?
CRC allows the transmit finish to append associate R-bit check code to the K-bit data to be sent, generate a replacement frame, and send the frame to the receive finish. once receiving the new frame, the receive finish checks whether or not the received data is correct supported the received data and check code.
(Example of information and check code)
The check code has to make sure that the generated new frame is dividable by designated|a particular} range that's selected by each the transmit finish and receive finish (modulo-2 division). The receive finish divides the received new frame by the chosen divisor. as a result of variety has been else before the info frame is shipped to get rid of the rest, there ought to be no remainder. If there's a remainder, miscalculation happens throughout the transmission of the frame.
An R-bit check code is appended to the K-bit knowledge, and therefore the entire code length becomes N bits. this kind of code is additionally mentioned as (N,K) code. For a given (N,K) code, it will be well-tried that there's a polynomial g(x) whose highest power is N–K=R, associated an R-bit check code will be generated supported g(x). The rule is predicated on the GF(2) polynomial arithmetic, as shown within the following figure.
(CRC calculation formula)
g(x) is termed the generator polynomial of the check code. completely different|completely different} CRC generator polynomials have different error detection capabilities. To use associate R-bit check code, the facility of the generator polynomial should be R. the subsequent lists some common customary polynomials.
(Commonly used generator polynomials)
The value of those polynomials is that the divisor of modulo two division. getting and checking the check code by mistreatment the divisor contains the subsequent steps:
✅Before communication, the transmit finish and receive finish agree on a divisor P, that is, the worth of a polynomial. The length of P ought to be R+1 bits.
✅The transmit finish 1st appends R zeros to the first K-bit knowledge, that is comparable to shifting the first data to the left by R bits.
✅Then, a modulo-2 division operation (an XOR operation) is performed to divide the (K+R)-bit range obtained once the addition of zeros by P, associated cyclic calculation is performed till an order of a remainder is a smaller amount than R. the rest is that the check code. If the check code length is a smaller amount than R bits, zeros ar prepended to that to confirm that the length is R bits.
✅The transmit finish appends the R-bit check code to the first data and sends the info to the receive finish.
✅When receiving the info, the receive finish divides the info by P mistreatment modulo-2 division. If there's no remainder, no error happens throughout data transmission. Otherwise, miscalculation happens.
Assume that g(x) is CRC-4, that equals X4 + X + one, and therefore the supply data M is 10110011. during this case, the divisor P is 10011.
The transmit finish shifts M leftward by four bits, and divides the ensuing range by P.
Example of CRC calculation at the transmit finish
The remainder is that the CRC check code, that is 0100 in this instance. The transmit finish appends 0100 to the first data frame 10110011 to get a replacement frame 101100110100, and sends the new frame to the receive finish. once receiving this frame, the receive finish divides the frame by the divisor P, and considers the frame correct if the division leaves no remainder.
Example of CRC check at the receive finish
[complete solution*] crc errors (Cyclic Redundancy Check errors)-100% fixed
If few CRC error packets occur on associate interface of a network device, no action is needed. If CRC error packets ar endlessly generated on associate interface, the potential cause is that the transmission medium is faulty. for instance, the connected twisted try or fiber is faulty, or the optical module on the interface doesn't work properly. during this case, replace the interface, optical module, or cable, then check whether or not the fault is corrected.
Because the reason for a cyclic redundancy check data error will be associated with the file being accessed and therefore the disc drive or disc drive concerned, there ar a range of approaches that may be taken to resolve this downside.
Solution:-01- Firstly Restart your computer
Restart the pc. This fast and effective method fixes a range of laptop issues, together with those related to data errors.
Solution:-02- Reconnect external or internal drives
Reconnect external drives. If the error seems whereas making an attempt to access an external exhausting drive or disc drive, unplug it, restart the pc, then reconnect it once more.
Solution:-03- Re download the file
Re download the file. If you get the CRC error once gap or running a file you downloaded, it's attainable the file became corrupted throughout the transfer method because of a server or internet association downside. Downloading the file once more usually removes any bugs or glitches.
Before re-downloading a file, reserve it beneath a distinct file name so you do not accidentally open the first faulty file once more.
Solution:-04- Install a New copy
Request a brand new copy. If the glitchy file was sent to you in associate email message, raise the first sender to send you a brand new copy. The file might not have been attached or uploaded to the email properly.
Solution:-05- update latest version OS
Install the newest package updates. New macOS and Windows updates frequently embody fixes for drive and file errors and might increase system stability staggeringly.
Solution:-06- Scan the whole drive
Scan the drive. Perform a drive scan on Windows and use Disk Utility aid on mac OS to mechanically scan your device within the background to observe and proper errors.
Only perform a scan on the drives that you simply accessed once the data error occurred.
Solution:-07- scan drive by the help of chkdsk
Scan the drive victimisation chkdsk. If the CRC error makes it troublesome to scan the affected drive on a Windows laptop via the on top of technique, begin a scan by typewriting "chkdsk /f c:" into the search bar of the Windows taskbar, then select Run command. certify to alter the c to the right drive letter.
Solution:-08- Install in safe mode
Install from Safe Mode. If you repeatedly get a circular redundancy check error once putting in a program from a disk, restart Windows in Safe Mode and conceive to install it from there.
After the installation completes in Safe Mode, restart the pc and run Windows as traditional.
Solution:-09- Format disk drive
Format the disc drive. If a tough drive or disc drive repeatedly provides you bother, you will ought to reformat it. this could be a final resort, because it deletes everything presently on the drive.

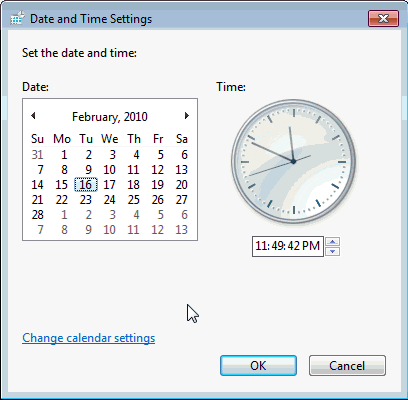

Solution:-10- Check system date and time
